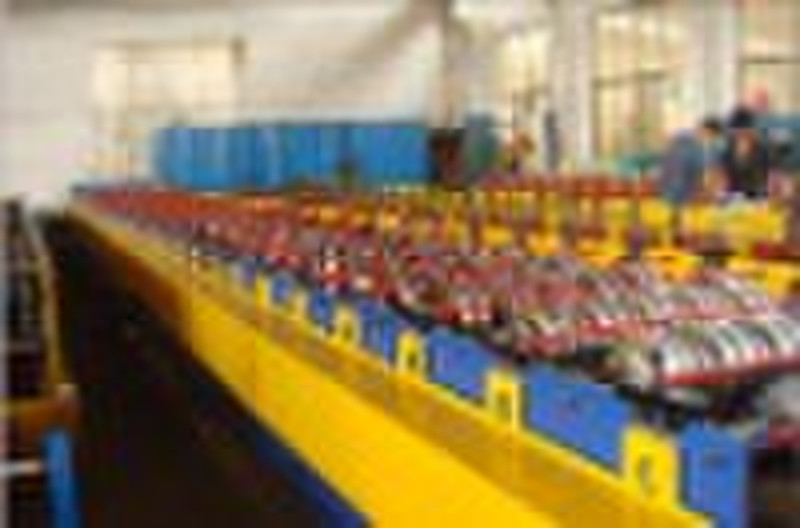

Roof Panle Roll Forming Machine

Roof Panle Roll Forming Machine 1. Specification: Raw Material Scale (mm): 1000mm/1250mm *0.25-0.7mm*L Rolling Depression Speed: 17-20M/min Roller Number: 18-26 couple (Under specific panel shape) Main Axletree Material: Adopt high grade 45'steel with chromizing on surface Power of the Main Pump: 4KW Pressure of Hydraulic Station: 10-12 Mpa Electrical Control System: Using PLC control the quantity, length automatically, touch screen. Equipment shape size: Approximately 6000mm*1600*1200 Equipment total weight: Approximately 7-10 Ton (According to specific panel shape) 2. Tile Forming Machine Components: Manual Un-coiler---------------------------------------1 set Roll- Forming M/C-------------------------------------1 set Hydraulic Cutting---------------------------------------1 set PLC Control System------------------------------------1 set Product Rack (un-powered) ---------------------------1 set 3. Technical Specification: Manual Un-coiler: Un-powered, Load capacity= Max 5 Tons Roll-Forming M/C: About 18 steps to form, Material of Roller 45' steel with chromizing on surface Voltage: 380V/50Hz, Main Line Speed: 8-12 m/min Hydraulic Cutting: Stop to cut, Post cut, Cutting tool material: Cr12, Heat treatment PLC Control System: Using PLC Control the quantity, length automatically, LCD screen Product Rack (Un powered) 4. Hydraulic Un-coiler: Hydraulic system to expand coil inner hole Frequency inverter to regulate turning Automatic stop device Load capacity= Max 5 Tons 5. Material: Coil Width: 1000mm, 1250 mm Suitable Coil Thickness: 0.25mm-0.7mm
